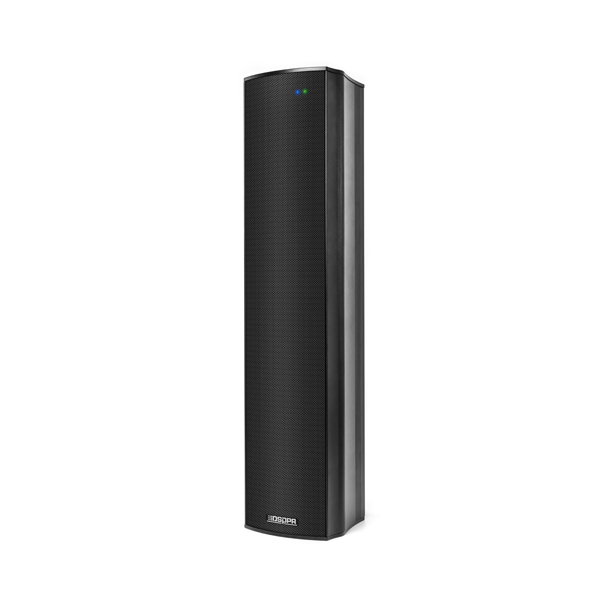

POE6080 80W Network Outdoor Column Speaker - 翻译中...

الميزات

● The speaker power ratings are 80W, 120W, and 180W respectively;
● Supports networked broadcasting functionality;
● Complies with the POE 802.3bt power supply standard and supports external DC 48V power input;
● Compatible with POE 802.3at power supply standard switches, with output power limited to one-third of the rated power;
● Equipped with a built-in DSP digital processor featuring gain adjustment, volume control, priority adjustment, and 10-band EQ tuning;
● All parameters can be configured via a web interface;
● Includes a standard bracket allowing tilt and horizontal angle adjustments;
● Custom digital network interfaces such as DANTE or AES67 can be configured;
● Features a streamlined design with a sleek and aesthetically pleasing appearance, suitable for various venue decorations;
● Utilizes a 4.5" glass fiber cone woofer and a 1" neodymium magnet tweeter combination, delivering a wide frequency response, clear bass layers, and bright, crisp highs;
● Includes a versatile mounting bracket for easy installation;
● Constructed with a sturdy aluminum alloy cabinet and aluminum grille, resistant to deformation and rust.

  • مقدمة
  • المواصفات

翻译中...

Model

POE6080

POE6120

POE6180

Rated Output Power

(CEA2006-490Standard 1%@1khz)

80W

120W

180W

Rated Impedance

5.3Ω

Power Amplifier Frequency Response

20Hz-20kHz ±3dB (Normal working conditions, rated load)

SNR

≥80dB 100V Priority input  71≥(A Weighted)

Total Harmonic Distortion

≤0.3%(Normal working conditions,8Ω)

Input Equilibrium

10 PEQ(±18dB)

100V Priority Input Sensitivity

100Vrms±5V

Input Impedance

≥200kΩ

Power Supply

POE802.3bt (POE++) Standard Power Supply or DC48Vto DC54V

Recommended POE Switch.

TL-SG1005PB/TP-LINK

Speaker Unit

4.5"×2,1”×1

4.5"×4,1”×1

4.5"×6,1”×1

Electroacoustic Frequency Response

95Hz-18kHz

95Hz-18kHz

95Hz-18kHz

Maximum Sound Pressure Level

109±3dB

113±2dB

116±2dB

Working Temperature

-40℃ to 70℃

Network Transmission Distance

Use CAT6A network cables, with an optimal length within 80m.

Outer Packaging Dimensions (L×W×H mm)

732*420*255mm

972*420*255mm

1237*420*255mm

Product Dimensions (L×W×H mm)

610*140*155mm

850*140*155mm

1105*140*155mm

Gross Weight

15.8kg

22.3kg

28.2kg

Net Weight

6.9kg

10.15kg

13.10kg
