CMA20 6-Zone Remote Paging Station - 翻译中...

الميزات

● Balanced Line Level Output: It has balanced output to be able to extend to long distance operation.
● RJ-45 Sockets: Each paging station has two RJ-45 sockets. Use CAT5 Ethernet cable to connect to the amplifier. It can be extended up to 6 paging stations.
● Zone Switch: Each unit has two zone switches. When the zone is selected, LED indicator will light up.
● TALK Button: Press TALK button, if there is other higher priority paging station is operating, the LED indicator will be flashing; if there is no other higher priority paging station operating, this paging station will trigger the amplifier to activate preset zones. After announcement, release TALK button, all of the preset Zone LED will light off.

الاتصال الآن اترك رسالة تنزيل

مقدمة
المواصفات

翻译中...

Model	CMA20
Power Source Input	24V DC, 500mA
Current Consumption	＜50mA
Output Level	1V
Frequency Response	100Hz~15kHz
Speech Filter	315Hz (-3dB), 6dB/octave
Distortion	＜1%
Interconnection	RJ-45×2
Indicators	Z1~Z2 LED, green Lock LED, green TALK LED, green/amber two colors
Dimensions (H×W×D)	55×108×240mm
Weight	1kg

سابق: CMA01V Wall Panel with Volume Control - 翻译中...

التالي: P-6112 P-6124 P-60W P-60M Multi-function Matrix PA System - 翻译中...

ربط المنتجات

MP906 4x4 خلاط مكبر للصوتNovember 15, 2016تم تصميم نظام تضخيم مكبر الصوت المدمج MP906 مع أنبوب طاقة مستورد ، مما ينتج عنه قوة قوية ، نطاق تردد عريض ، ضوضاء منخفضة ، دقة عالية وجودة على مستوى الأداء.view

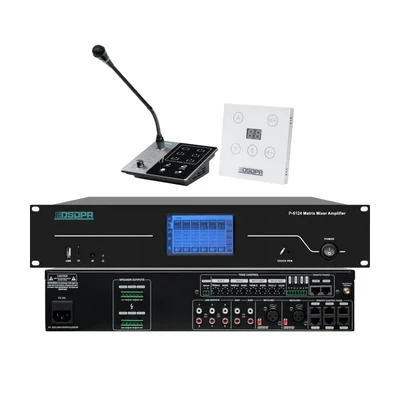

P-6112 P-6124 P-60W P-60M Multi-function Matrix PA System - 翻译中...March 10, 2026The P-6112 P-6124 P-60M P-60W multi-function matrix public address system is a newly designed and highly integrated audio matrix host system. This new system not only features an 8 × 6 signal matrix ...view
