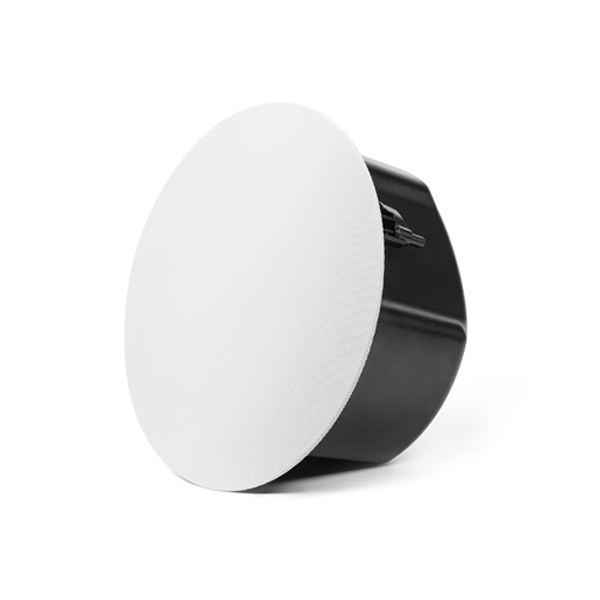

DSP7181 Two-Way 8-Inch 100W Coaxial Ceiling Loudspeaker with Power Tap - 翻译中....

الميزات

● Unit Driver: Equipped with 1 full-range driver and 1 tweeter for rich sound.
● Rated Power: 100W for consistent audio performance,ensuring a stable audio output.
● Power Mode: This product supports both 8Ω low impedance and 100V constant voltage input, with a built-in power tap selector knob for easy adjustment.
● Sensitivity: 92dB at 1m/1W for efficient response.
● Max. SPL.: 112dB at 1m for loud output.
● Freq. Resp.: 70Hz-20KHz, covering the audible spectrum.
● Input Connector: 4-Pin Phoenix Terminal.
● Grille Type: Metal Grille.

الاتصال الآن اترك رسالة تنزيل

مقدمة
المواصفات

翻译中...

Model		DSP7154	DSP7166	DSP7181
Drive Units	Full-range	5"x1	6"x1	8"x1
Drive Units	Tweeter	1"x1	1.5"x1	1.5"x1
Rated Power (RMS)		40W	60W	100W
Power Adjustment	100V	40W-20W-10W-5W-2.5W	60W-30W-15W-7.5W-3.7W	100W-50W-25W-12W-6W
Power Adjustment	8Ω	40W	60W	100W
Freq. Response		80Hz-20KHz	75Hz-19KHz	70Hz-20KHz
Sensitivity		87dB	90dB	92dB
Maximum SPL		103dB	108dB	112dB
Dimension(Diameter*Height)		235mm×135mm	271mm×150mm	334mm×178mm
Cutout Dimension		205mm	238mm	294mm
Input Connector		4-Pin Phoenix Terminal
Grille Type		Metal Grille
