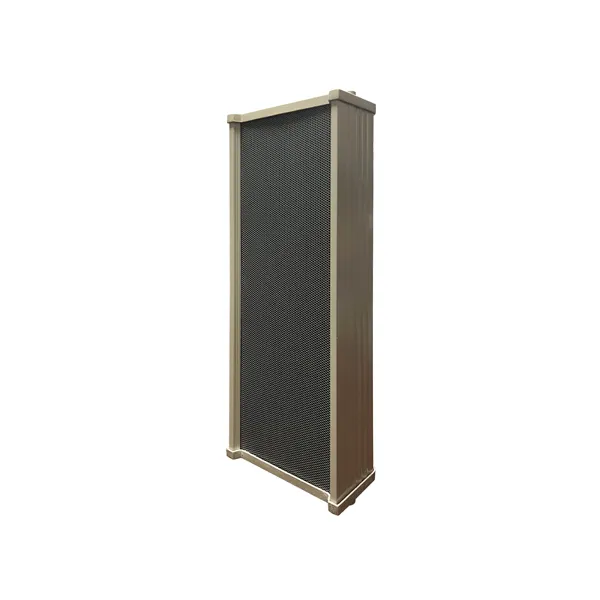

WEP6050RPG Addressable Multi-mode Receiver Terminal - 翻译中...

الميزات

● The column speaker adopts a waterproof 4-unit mid-high frequency driver design, suitable for both indoor and outdoor use, delivering clear and bright sound.
● Supports RDS FM, wired IP, 4G, and Wi-Fi reception, and can operate across network segments.
● Built-in gas discharge lightning protection tube absorbs high voltage and strong current, safeguarding the device against lightning strikes with high reliability.
● Supports digital audio decoding with up to 48 kHz sampling rate and 16-bit resolution.
● Supports remote scheduled power-on and digital volume control via the host system, eliminating issues with mechanical potentiometers over time.
● Interfaces include: 1 × RJ45 port, 1 × 4G antenna port, 1 × Wi-Fi antenna port, 1 × F-type RDS antenna port, 1 × USB communication port, 1 × reset button, 1 × SIM card slot, and 1 × status indicator LED.
● Operating status indicator LED facilitates troubleshooting.
● Reserved communication port allows for parameter configuration and firmware upgrades.
● Auto-standby function when no signal is detected, ensuring low power consumption and extended device lifespan.
● Features a unique physical code (non-modifiable) and a remotely configurable resource code.
● Supports volume fade-in during broadcasts; normal broadcast volume is continuously adjustable, while emergency broadcast volume is fixed.
● Remote web management function allows configuration of IP address, server address, reception frequency, resource code, and other parameters.
● Supports remote configuration of operational parameters via the management platform (including volume, FM frequency, etc.).
● Supports zonal broadcast control.
● Network configuration supports return channel functionality.
● Built-in high-performance microphone allows remote monitoring of the column speaker sound in real time.
● One-key factory reset function; the amplifier features short-circuit protection.
● FM range: 76–108 MHz; frequency response: 120 Hz–15 kHz; SNR ≥ 56 dB.
● Supports digital audio decoding at up to 48 kHz/16-bit and uploading of audio files in MP3, WAV, FLAC, AAC, OGG, WMA, WV, AC3, AMR, APE, M4A, M4R, MP2 formats, and video files in AVI, MKV, MPEG, MP4, WMV, MOV, 3GP, RMVB, FLV, F4V, TS formats.
● Network decoding frequency response: 100 Hz–18 kHz; SNR ≥ 78 dB; maximum sound pressure level > 104 dB.
● Continuous power output: 50 W (conditions: 1 kHz sine wave, full frequency THD ≤ 1%, dual channel 8 Ω); amplifier includes protections for power, temperature, and short circuits.
● The column speaker features self-diagnostic audio functionality.

الاتصال الآن اترك رسالة تنزيل

مقدمة
المواصفات

翻译中...

Model		WEP6050RPG
FM Reception	Reception Frequency	76-108MHz
	Frequency Response	100Hz-18KHz
	SNR	≥56dB
	FM RF Signal Input Level	2-100dBuV
	Data Demodulation	57 kHz, RDS encoding
Power & Communication	Power	25W× 2 / 8 Ω, Four-speaker Unit Structure
	Frequency Response	100Hz-18KHz
	Total Harmonic Distortion	≤0.5%(1KHz)
	Communication Method USB	TTL232/9600bps
	1-Way IP Input	100/1000Mbps, UDP Protocol
Network Audio Decoding	Decoding/Encoding	MPEG-1 Layer 2
	Sampling Rate	48KHz
	Sampling Precision	24-bit
	SNR	≥78dB
	Bitrate	64Kbps
	Effective Frequency Range	100Hz-18KHz
	Max. SPL	104dB
Power Supply	Standby Power Consumption	≤3W
	Full Load Power Consumption	≤80W
	Voltage & Frequency	AC100-240V/50Hz
Package	Product Net Weight	5.2KG
Package	Carton Dimensions	722mm×300mm×210mm
