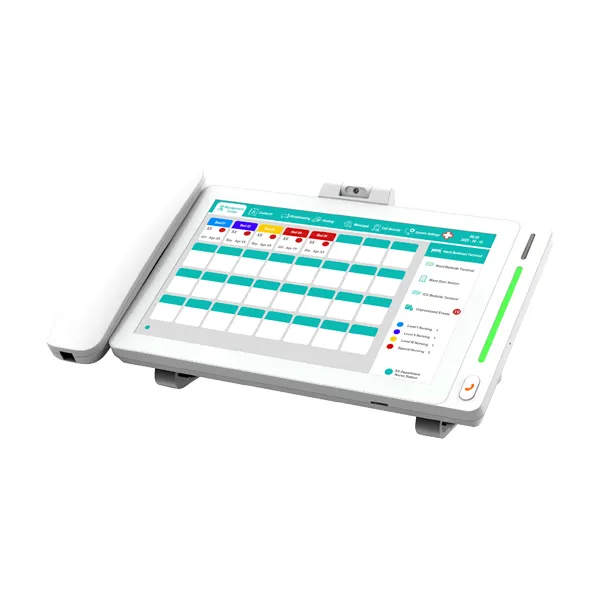

MC7111A 10-Inch Nurse Station Management Console - 翻译中...

الميزات

● Centralized Call Management: Supports real-time reception, display, and management of calls from bedside terminals, bathroom emergency buttons, and ward door stations.
● Two-way Voice Intercom: Provides clear full-duplex voice communication between the nurse station and patient terminals for efficient response.
● High-definition Touchscreen Operation: Equipped with a large HD touchscreen for intuitive operation and quick access to system functions.
● Real-time Ward Status Display: Displays room information, patient status, and alarm notifications clearly, allowing nurses to monitor ward conditions at a glance.
● Priority and Alarm Handling: Supports priority call handling and emergency alarm notifications to ensure urgent situations are addressed immediately.
● Network-based Communication: Adopts IP network communication for stable data transmission and convenient system expansion.
● Flexible System Integration: Can be integrated with other hospital systems such as ward display systems, corridor displays, and door light indicators.
● Stable and Reliable Operation: Industrial-grade design with stable performance suitable for continuous operation in medical environments.

الاتصال الآن اترك رسالة تنزيل

مقدمة
المواصفات

翻译中...

Model	MC7111A
Screen Size	10 inches
Screen Brightness	300 cd/m²
Camera (Optional)	8 MP; adjustable angle approx. 35°; sliding cover design for privacy protection
Resolution	10": 1280 × 800 px
Main Chip	Quad-core Cortex™-A53, 1.8 GHz
Memory	1 GB (standard)
Storage	8 GB (standard)
Video Formats	MP4, AVI, MKV, MOV
Audio Formats	MP3, AAC, WAV
Image Formats	JPEG, PNG
Network	10/100 Mbps adaptive
Communication Protocols	TCP, UDP, RTP, ARP, IGMP, HTTP, SIP / Cellular
Interfaces	Power interface ×1, RJ45 ×1, Flashing switch ×1, Type-C ×1 (convertible to USB with adapter), Serial port ×1, RS-485 interface ×1, Control interface ×1, Audio output ×1, Audio input ×1
Other Features	RGB three-color indicator light (configurable to multiple colors); Supports IC card, Bluetooth, and WiFi (optional); Bluetooth: version 4.0 or above; WiFi: supports 2.4 GHz band; External hardware watchdog to prevent system crashes
Handset	Magnetic handset design
Physical Buttons	Emergency support button, Hands-free button, Hidden screen on/off button, Hidden restart button
Touch Control	Multi-point capacitive touchscreen, supporting 10-point touch and operation with gloves
Operating System	Android10
Power Supply	DC 18–24V or standard PoE
Standby Power Consumption	10": < 7 W
Working Power Consumption	10": < 5 W
Operating Temperature	-40℃～+65℃
Installation Method	Desktop placement
