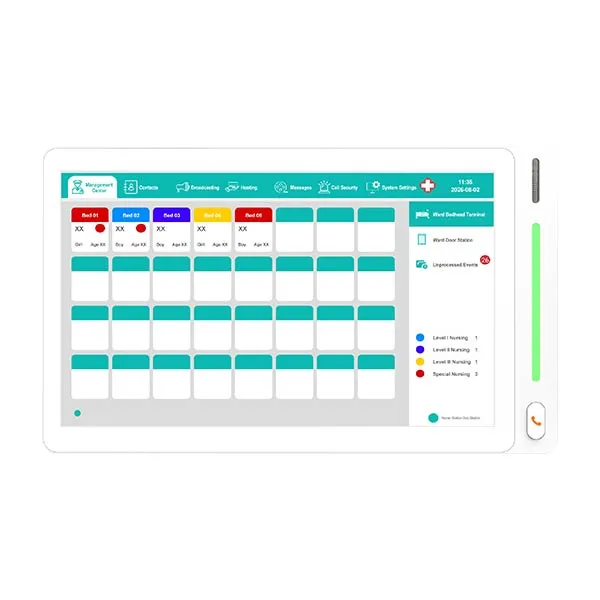

MC7112 10-Inch Nurse Station Sub Station - 翻译中...

الميزات

● Auxiliary Nurse Station Management: Works as a secondary management terminal to assist the nurse station console in handling patient calls and ward communication.
● Multi-terminal Call Management: Supports communication with bedside terminals, ward door stations, ICU bedside terminals, and other medical terminals.
● Two-way Voice Intercom: Provides clear hands-free and handset voice communication for efficient interaction between medical staff and patients.
● 10-inch Touchscreen Operation: Equipped with a high-definition capacitive touchscreen for intuitive operation and quick access to system functions.
● Real-time Ward Information Display: Displays bed information, room status, call events, and unprocessed notifications, enabling efficient ward monitoring.
● Flexible Call Transfer and Delegation: Supports call transfer and hosting functions, allowing calls to be handled by designated nurse stations when required.
● Broadcast and Message Functions: Supports zone broadcasting, music playback, and offline message recording for enhanced communication efficiency.
● Network-based Communication: Adopts TCP/IP network communication for stable data transmission and convenient system expansion.
● Flexible Installation Options: Supports both wall-mounted and desktop installation to meet different deployment requirements.
● Reliable System Operation: Equipped with hardware watchdog protection to ensure stable operation in continuous medical environments.

الاتصال الآن اترك رسالة

مقدمة
المواصفات

翻译中...

Model	MC7112
Screen Size	10 inches
Camera (Optional)	800 W
Resolution	10": 1280 × 800 px
Main Chip	Quad-core Cortex™-A53, 1.8 GHz
Memory	1 GB (standard)
Storage	8 GB (standard)
Video Codec	H.264
Audio Codec	G.711 / G.722 / G.729
Network	10/100 Mbps adaptive
Communication Protocols	TCP, UDP, RTP, ARP, IGMP, HTTP, SIP
Interfaces	Power Interface ×1, RJ45 ×1, Programming Switch ×1, Type-C ×1, Serial Port ×1, RS-485 ×1, Alarm Input ×2, Audio Output ×1, Audio Input ×1.
Other Features	RGB three-color indicator light with customizable colors; Supports IC card, Bluetooth, and WiFi (optional); Bluetooth: Version 4.0 or above; WiFi: Supports 2.4 GHz frequency band; External hardware watchdog to prevent system crashes
Touch Control	Multi-point capacitive touchscreen
Operating System	Android10
Working Voltage	DC 18–24V or standard PoE
Standby Power Consumption	10": < 5 W
Working Power Consumption	10": < 7 W
Operating Temperature	-40℃～+65℃
Installation Method	Wall-mounted / Desktop
Package Dimensions	270 × 190 × 33 mm
Product Dimensions	266 × 164 × 20 mm
Net Weight	0.65 kg (excluding the bracket)
Gross Weight	0.70 kg (excluding the bracket)
